LS-B10L 1 cavity semi automatic 7L To 12L 10L plastic water bottle moulding machine

LS-B10L 1 cavity semi automatic 7L To 12L 10L plastic water bottle moulding machine

LS-B10L 3 gallon bottle blow moulding machine can produce different shapes from 7L to 12L mineral water bottles, pesticide bottle, and other plastic PET containers. High quality,low defect rate,easy operation.

Machine Parts

  • a.PLC controller and screen : Thinget(China)
  • b.Pneumatic parts:YongCheng (China)/Festo(Germany)
  • c.Valve parts: STNC (China)
  • d.Other parts are world-famous brands

Follow us on

Machine Features

  • A.Advanced PLC control system with convenient operation.

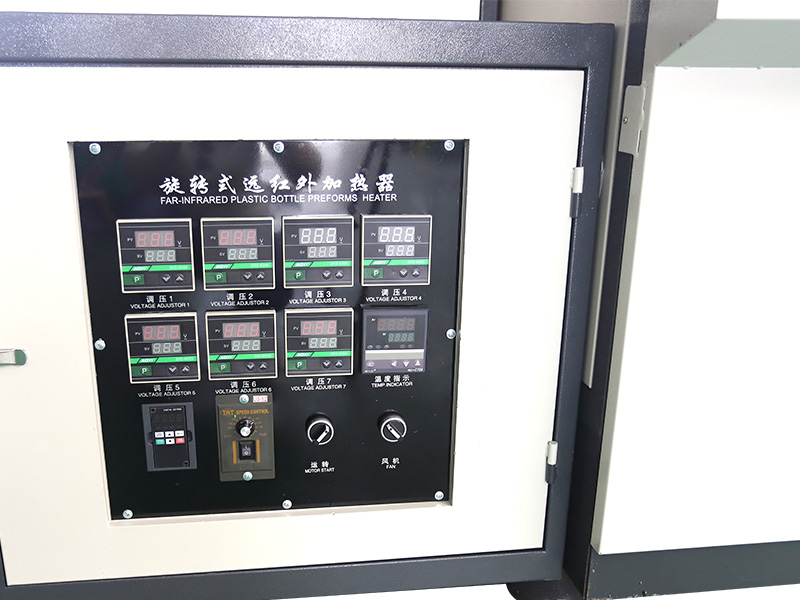

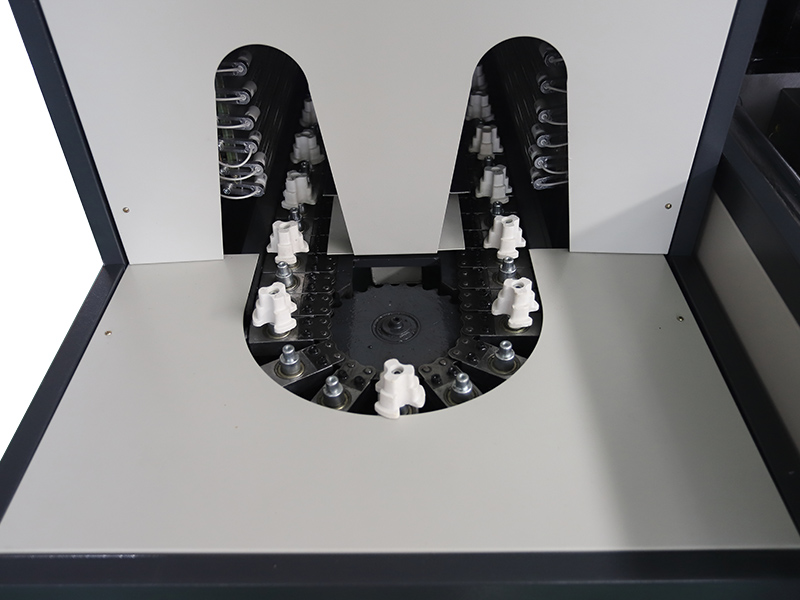

  • B.Precise infrared heating, the preform rotates by itself and on the orbit at the same time, with strong penetration and high heating efficiency.
  • C.Two ways of operate: automatic and manual.
  • D.Safety, high efficiency and energy saving
  • E.Simple installation and operation.
  • F.Long time after-sales service

Product Detail

Model

LS-B10L

Theoretical output

350BPH

Heating capacity

18KW

Max bottle volume

12L

Blowing pressure

≦3.0MPA

Motion pressure

≦1.0MPA

Max diameter*height

Φ260*H430

Mould thickness

260-430MM

Weight

1300KGS

Main machine size

2000*650*1700MM

Heater size

2200*650*1450MM
